Cone Penetration Testing (CPT) in Laramie, WY

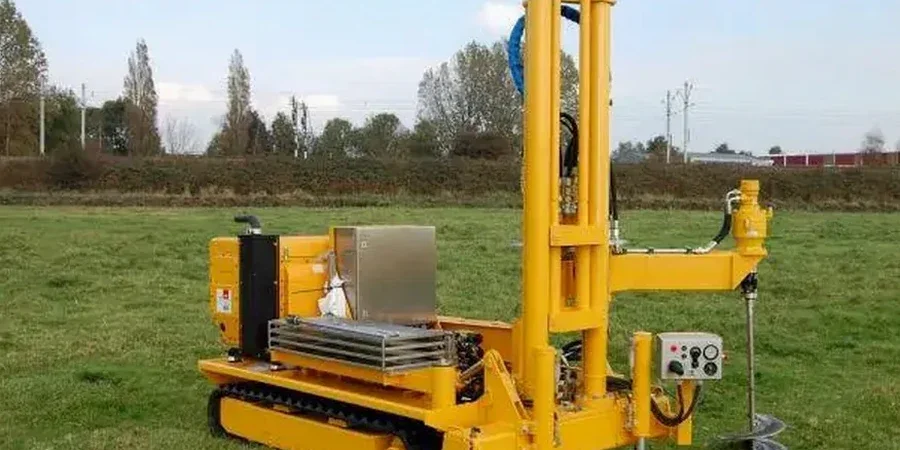

Laramie sits at 7,200 feet on the high Laramie Plains, where winter temperatures routinely drop below -20°F. This freeze-thaw cycling demands precise geotechnical data. The Cone Penetration Test delivers that. It pushes an instrumented cone into the ground at a constant rate, measuring tip resistance and sleeve friction continuously. No samples are extracted. Instead, engineers get a real-time stratigraphic profile. In Laramie, that means identifying the depth to the Casper Formation sandstone or mapping the saturated alluvial silts along the Laramie River without gaps. The test pits method can complement CPT data when visual inspection of fill is required, but only CPT provides uninterrupted soil behavior type classification across the full profile. Our laboratory operates under ISO/IEC 17025 accreditation, ensuring every CPT sounding meets ASTM D5778 standards for repeatability and accuracy.

Continuous CPT soundings in Laramie's alluvial deposits reveal thin liquefiable silt seams that SPT blow counts miss entirely.

Methodology and scope

Soil conditions shift dramatically across Laramie. Near the University of Wyoming campus, thin sandy clays overlie weathered bedrock at shallow depths. East toward the Laramie Regional Airport, the alluvial deposits thicken considerably. CPT captures these transitions with centimeter-scale resolution. The cone measures pore water pressure during penetration, which is critical for detecting the perched groundwater tables common in spring. When designing deep foundations for structures near the Snowy Range foothills, the CPT data feeds directly into bearing capacity calculations. For liquefaction assessments in the sandy lenses of the Laramie River floodplain, the liquefaction analysis module uses CPT tip resistance to calculate the factor of safety against cyclic softening. In areas where bedrock refusal occurs above 15 feet, we often pair CPT with seismic refraction to map the rippability of the underlying granite before specifying excavation methods.

Local geotechnical context

A common mistake in Laramie is treating the entire site as uniform alluvium based on one boring log. The Laramie River meandered historically across the valley floor, leaving behind abandoned channels filled with soft organic silts and loose sands. These paleochannels can be 6 to 12 feet wide. Missing one under a footing means differential settlement. CPT soundings on a tight grid detect these features by their low tip resistance signature. Another error is stopping the investigation at 10 feet when the frost penetration depth in Albany County can reach 5 feet below grade, requiring deeper bearing strata evaluation. The footings design for any heated structure in Laramie must account for the active layer above the permafrost-free but deeply frozen winter soil profile.

Parameter	Typical value
Cone tip resistance (qc)	0–100 MPa
Sleeve friction (fs)	0–1 MPa
Friction ratio (Rf)	0–10%
Pore pressure (u2)	-0.1 to 2 MPa
Standard penetration rate	20 mm/s ±5 mm/s
Data acquisition interval	10–50 mm
Maximum depth capacity	30 m (98 ft) in Laramie soils

Parameter

Typical value

Cone tip resistance (qc)

0–100 MPa

Sleeve friction (fs)

0–1 MPa

Friction ratio (Rf)

0–10%

Pore pressure (u2)

-0.1 to 2 MPa

Standard penetration rate

20 mm/s ±5 mm/s

Data acquisition interval

10–50 mm

Maximum depth capacity

30 m (98 ft) in Laramie soils

Related services

Piezocone Dissipation Testing

Stops penetration at target depths to record pore pressure decay over time. This yields the coefficient of consolidation directly, essential for estimating settlement rates in Laramie's clayey alluvium.

Seismic CPT (SCPT)

Adds a geophone module behind the cone to measure shear wave velocity (Vs) every meter. Vs profiles are mandatory for IBC site class determination in Laramie's seismic design category C.

Questions and answers

What is the typical cost range for a CPT sounding in the Laramie area?

For a standard CPT sounding in Laramie, costs typically range from US$180 to US$220 per meter, depending on site accessibility, depth required, and whether pore pressure dissipation tests are included.

How deep can you push the cone in Laramie's soils before refusal?

Refusal depth depends on the site. In the alluvial valley fill, we routinely reach 20 to 25 meters. Near the foothills, refusal on weathered Casper Formation sandstone can occur as shallow as 4 to 6 meters. We use a pre-drill option to bypass hard fill or cobble layers.

Does CPT replace soil borings for IBC foundation design?

CPT provides continuous stratigraphic data and engineering parameters, but it does not retrieve physical samples. For Laramie projects, we often combine CPT with a limited number of soil borings to verify soil classification and obtain samples for laboratory testing per ASTM D2487.
