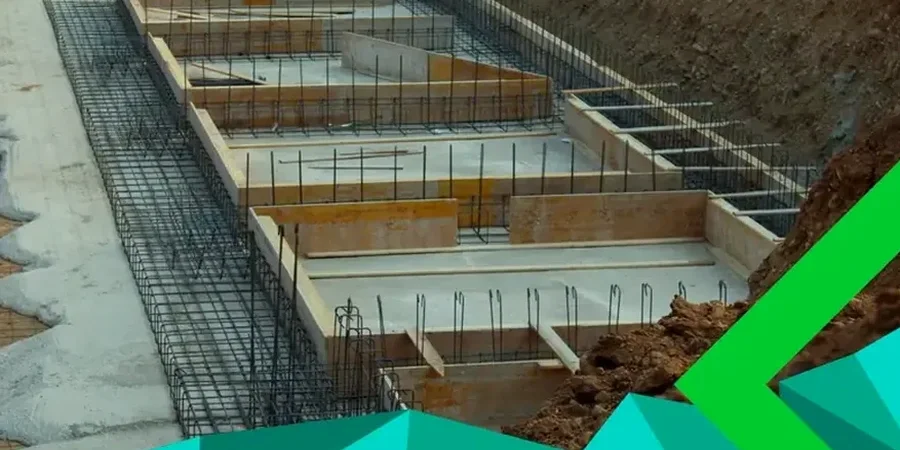

A three-story mixed-use building going up near the corner of 3rd and Grand in downtown Laramie — that was a project where the geotech report flagged moderate swell potential in the upper five feet and a frost depth of 48 inches per Albany County code. Shallow foundation design for that site meant we sized the continuous footings to sit below frost and widened the bearing area to keep net pressure under 2,000 psf, per the IBC presumptive values. When the soil investigation reveals stiff sandy clay over weathered Sherman Granite, the shallow foundation design approach shifts from textbook tables to on-site verification. We often couple the bearing-capacity check with a plate load test right at footing elevation to confirm modulus of subgrade reaction before the structural engineer locks the rebar schedule.
In Laramie’s high-plains environment, bearing capacity is rarely the problem — differential heave and frost jacking are what separate a durable shallow foundation from one that cracks in the second winter.
Questions and answers
What is the minimum footing depth for a shallow foundation in Laramie?
Per IBC Table 1809.5, Albany County requires a minimum footing embedment of 48 inches below finished grade to stay below the design frost line. On sites with exposed bedrock or well-drained gravel, the building official may accept a reduction, but that requires a geotechnical justification letter.
How much does a shallow foundation design report cost in Laramie?
For a standard residential or small commercial parcel in Laramie, the geotechnical investigation plus the shallow foundation design report typically falls in the range of US$1,830 to US$2,920. The spread depends on whether we need to run plate load tests, the number of test pits or borings, and the complexity of the soil profile.
Do we need to worry about expansive soils when designing a shallow foundation in Wyoming?
Yes. The claystone and siltstone formations around Laramie — particularly the Casper and lower Satanka — produce residual soils with plasticity indices between 15 and 35. That means moderate to high swell potential. The design mitigates this with a moisture-controlled compacted fill pad, perimeter drainage, and sometimes a void form system under grade beams.
How do you verify that the soil can handle the bearing pressure the structural engineer assumed?
We run a combination of field and lab verification. In the field, a plate load test at footing elevation gives us the load-settlement curve and the modulus of subgrade reaction directly. In the lab, we run unconfined compression or triaxial tests on Shelby-tube samples to confirm undrained shear strength. The lower of the two controls the allowable bearing pressure that goes into the foundation design report.
