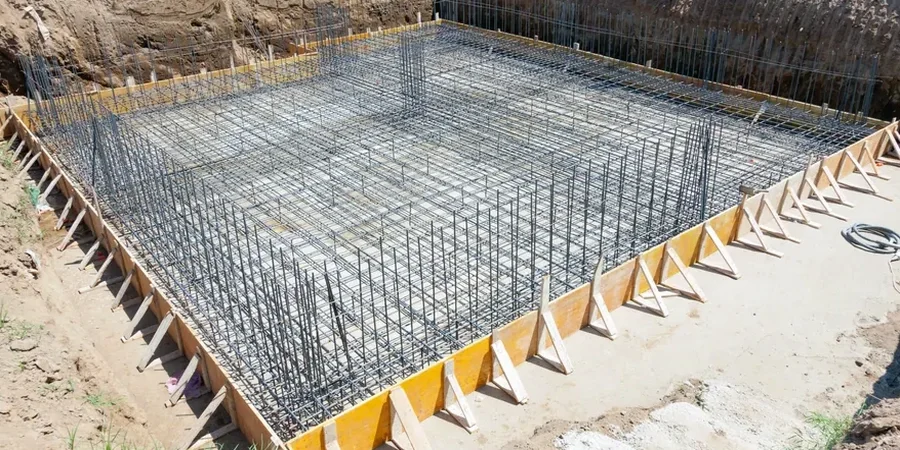

Raft and Mat Foundation Design in Laramie: Ground-Ready Solutions

The drilling rig is the first thing you see on a Laramie job site — a truck-mounted CME-75 auger boring through the topsoil to reach what's really holding the ground together underneath. Raft and mat foundation design in Laramie starts right there, because the upper few feet of silty clay in the Laramie Basin can swell, shrink, and heave depending on the season, and nobody wants a slab that cracks before the drywall goes up. We pull Shelby tube samples from depths of 15 to 25 feet, run them through our lab for consolidation and swell potential, and feed that data directly into the foundation model. Before the concrete is poured, many projects also benefit from a test pit investigation to visually confirm the stratigraphy we logged during drilling, especially when the contact between the alluvium and the underlying bedrock varies across the site footprint.

A mat foundation in Laramie isn't just a thick slab — it's a settlement-tolerant raft that bridges the variable clays of the basin and keeps your structure level through freeze-thaw cycles.

Methodology and scope

The Laramie climate doesn't play fair with shallow footings — we get frost penetration down to 60 inches most winters, and the spring thaw saturates the near-surface clays right when you're trying to start construction. Raft and mat foundation design here has to account for that 60-inch frost depth while also managing the low bearing capacity of the saturated silts that show up as soon as the snow melts. We run ASTM D2487 classification tests on every sample, then pair that with swell-consolidation testing to model how the soil will behave under the continuous load of a mat. In areas near the Laramie River or along the Spring Creek drainage, we often recommend a CPT test to get a continuous profile of tip resistance and pore pressure — it picks up thin sand lenses that an auger sample might miss, and those lenses can make or break a drainage plan under the slab. For projects where the mat is combined with a deep basement, the excavation monitoring program becomes critical to track wall deflection while we're still in the design phase.

Local geotechnical context

I remember a project on the east side of Laramie, near the Pilot Hill area, where the owner wanted to save money by skipping the subgrade verification on a mat foundation. The excavation sat open for two weeks during a wet October, the exposed clay absorbed moisture and lost its stiffness, and the concrete was poured directly onto a softened subgrade. Within six months, the slab had developed hairline cracks radiating from the center columns — not a structural failure, but a serviceability problem that cost more to repair than the verification testing would have. Raft and mat foundation design is sensitive to subgrade preparation because the entire slab is in contact with the soil; a soft spot doesn't just affect one footing, it changes the moment distribution across the whole mat. In Laramie's expansive clays, we specify a moisture-conditioned, compacted subbase and require proof-rolling before the vapor barrier goes down. The extra day of field testing is cheap insurance against differential movement that can rack door frames and crack partition walls.

Typical values

Parameter	Typical value
Design frost depth (Laramie)	60 in per IBC / local amendment
Typical slab thickness range	18 to 36 in for commercial mats
Subgrade modulus (kv) derivation	From consolidation test (ASTM D2435)
Soil classification standard	ASTM D2487 (Unified Soil Classification)
Swell potential threshold	>3% swell triggers moisture-controlled subgrade spec
Concrete sulfate exposure class	S1 or S2 per ACI 318, based on soil testing
Reinforcement yield strength	Grade 60 (fy = 60 ksi) typical for raft mats

Related services

Mat Foundation Analysis and Reinforcement Design

We model the raft slab as a continuous plate on an elastic subgrade, calibrating the modulus of subgrade reaction from our lab consolidation tests rather than using textbook values. The deliverable includes slab thickness calculations, flexural and shear reinforcement schedules, and a detailed subgrade preparation specification that addresses the expansive clay conditions typical of Laramie. We reference IBC Chapter 18 and ASCE 7 for load combinations and safety factors.

Pre-Construction Subgrade Verification

After the excavation reaches design grade but before the vapor barrier and rebar go in, we return to the site to run nuclear density tests and proof-roll observations. We check that the compacted subbase meets the modulus we assumed in the design, and we take a few hand-auger samples to confirm moisture content hasn't changed from what the lab tests predicted. This step catches any softening from unexpected rainfall or utility trench backfill that could compromise the mat's performance.

Questions and answers

What does a raft or mat foundation design cost in Laramie?

For a typical residential or light commercial project in Laramie, a complete raft or mat foundation design package — including the site investigation, laboratory testing, and the engineering report with reinforcement plans — runs between US$1.040 and US$3.820. The final figure depends on the size of the slab, the number of borings required, and whether specialized testing like swell-consolidation or chemical analysis for sulfate attack is needed. We provide a fixed-price proposal after reviewing your site address and structural loads.

When is a mat foundation better than isolated footings in Laramie?

A mat foundation becomes the better option when the bearing soil has marginal capacity — common in the silty clays of the Laramie Basin — or when you're dealing with highly variable soil conditions across the building footprint. Instead of individual footings that can settle at different rates, a mat distributes the entire structural load over a continuous area, which reduces differential settlement. We also recommend mats when the water table is high, as in areas near the Laramie River, because the slab acts as a seal against hydrostatic pressure when designed with the right waterproofing and under-slab drainage.

How long does the design process take from investigation to final plans?

From the day the drilling crew arrives on site to the day you receive the stamped engineering report, the typical timeline is two to three weeks. The first week covers the field investigation and sample collection. The second week is laboratory testing — consolidation, swell, unconfined compression, and classification per ASTM D2487. The third week is the engineering analysis and drafting of the reinforcement layout. Larger commercial projects with multiple borings and complex load patterns may extend to four weeks, but we keep you updated at each stage so you can schedule your excavation and formwork crews without guessing.
